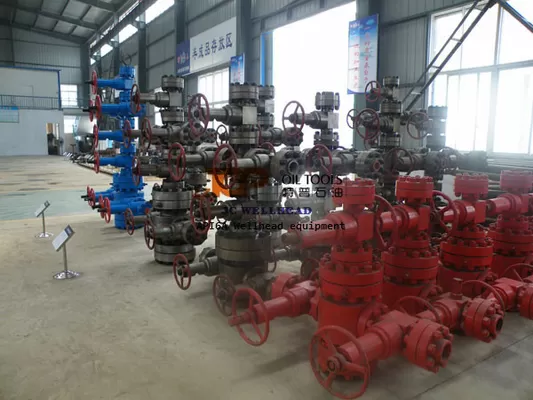

Forging Wellhead Christmas Tree Assembly 3000 Psi For Drilling well Completion
Product Details:
| Brand Name: | JC Wellhead |
| Certification: | API 6A |
| Model Number: | API 6A Wellhead Assembly |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Polywood case for land, air, ocean shipment |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | 100 sets / month Forging Wellhead Christmas Tree Assembly 3000 Psi For Drilling well Completion |
Description
| Application: | Oil & Gas Well Drilling And Completion Operation | Usage: | Wellhead Flow And Pressure Control |
| Material Class: | DD-NL | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Casing Head Spool Assembly | Working Pressure: | 3000 Psi |
| Nominal Flange Size: | 4 1/16″ X 5M | Process Type: | Forging |
| Highlight: | 3000 Psi Well Head Assembly, Completion Wellhead Christmas Tree, Forging Wellhead Christmas Tree | ||
Well Head Assembly 3000 Psi Drilling And Well Completion Wellheads
The Wellhead Equipment is designed and manufactured according to API 6A Specification, The wellhead equipment is applied for oil & gas well drilling operation and well completion. Normally the oil & gas wellhead equipment consists of casing head, casing head spool, tubing head spool and wellhead Christmas Tree.
Oilfield Drilling 5000psi Wellhead Christmas Tree Flow Control
Product Details:
| Brand Name: | JC Wellhead |
| Certification: | API 6A |
| Model Number: | 5000 psi Wellhead Equipment |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Polywood case for land, air, ocean shipment |
| Delivery Time: | 30-45 days |
| Payment Terms: | T/T, L/C, D/P |
| Supply Ability: | Supply Ability |
Oilfield Drilling 5000psi Wellhead Christmas Tree Flow Control
Description
| Application: | Oilfield Drilling Operation | Usage: | Oil Well Flow Control Equipment |
| Material: | EE | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Specification: | 13-5/8″ 5K | Working Pressure: | 5000 Psi |
| Highlight: | 5000psi Wellhead Christmas Tree, Oilfield Drilling Wellhead Christmas Tree, Flow Control Wellhead Christmas Tree | ||

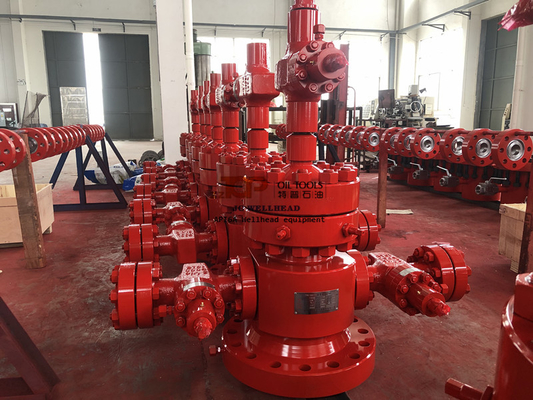

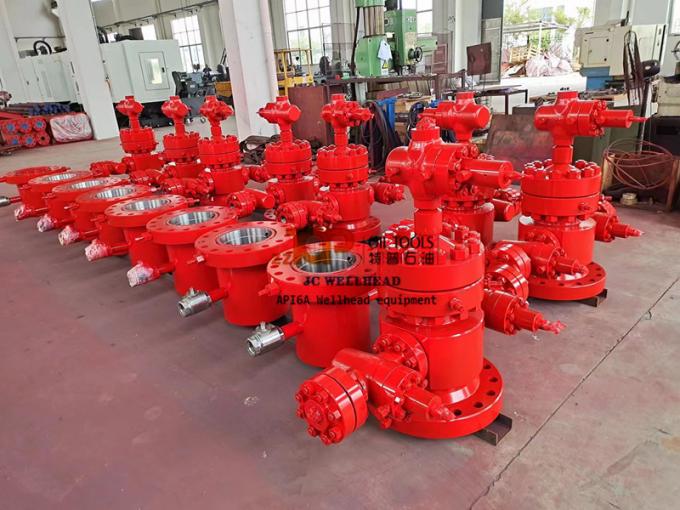

Wellhead Christmas Tree with Casing Head Tubing Head API 6A
The wellhead equipment is composed of wellhead Christmas tree, Casing head and tubing head spool. The wellhead equipment is conformed with API 6A, is the important component at the surface of an oil or gas well that provides the structural and pressure-containing interface for the drilling and production equipment. The wellhead assembly is a kind of safe, reliable wellhead equipment which is used for fixing drilling wellhead, connecting wellhead casing string, sealing and controlling annular space between pipes, hanging pipes, controlling wellhead pressure and adjust the flow rate of oil and gas. It is applicable to all the casing and tubing programs and connection types. The wellhead X tree can be used to guide oil to pipe and to close oil well if necessary. The wellhead Christmas tree can be used to guide oil to pipe and to close oil well if necessary, during the oilfield drilling operation.
Detailed specification of Wellhead Assembly
| WELLHEAD DESIGN 5K PSI SPOOL | ||
| SR NO. | QTY | DESCRIPTION |
| CASING HEAD HOUSING: 21 1/4 – 2K PSI C/W SOW | ||
| 1 | 1 | CASING HEAD HOSUING: 21 1/4 – 2K PSI FLANGED TOP X 20″ SLIP ON WELD BOTTOM WITH 2″ L.P ONE # OUTLET, API 6A, PSL-2, PR-2, MATERIAL FF, TEMP. “U”. |
| 2 | 1 | RING GASKET STD R-73 |
| 3 | 1 | CASING HANGER:TYPE IC-2 20″ X 13 3/8″ O.D CASING WITH SEAL, PSL-2, PR-2, MATERIAL FF, TEMP. “U”. |
| 4 | 1 | GATE VALVE: 2 1/16″-3K WITH 2″ LP ENDS. PSL-2, PR-2, MATERIAL-FF |
| 5 | 1 | NIPPLE 2″ API LP X 6″ LONG |
| 6 | 1 | BULL PLUG 2″ API LP X 3-3/4″ LONG,TAPPED 1/2” NPT |
| 7 | 1 | BULL PLUG 2″ API LP X 3-3/4″ LONG |
| 8 | 1 | GAUGE: PRESSURE 2K PSI, 4-1/2″ DIAMETER. 1/2″ NPT. |
| 9 | 1 | NEEDLE VALVE, ANGLE, 5K PSI WP, 1/2″ NPT MALE THREAD INLET X FEMALE THREAD OUTLET |
| 10 | 24 | STUDS , CONT. THD 1 5/8″ 11-3/4″ LONG |
| 11 | 48 | NUTS HEAVY-HEX 1.625-8 |
| 12 | 1 Each | TEST PLUG AND WEAR BUSHING , CONNECTION 4-1/2” IF FOR 21-1/4” CASING HEAD SPOOL |
| CASING HEAD SPOOL: 21-1/4″ 2K X 13-5/8″ 5K | ||
| 13 | 1 | CASING HEAD SPOOL IC-2-BP: 21 1/4″ 2K FLANGE BOTTOM X 13-5/8″ 5K TOP WITH TWO # 2-1/16″ 5K STUDDED OUTLETS. PREPARED FOR VR THREAD WITH DOUBLE PRESSURE SEALS TO SEAL ON 13 3/8″ OD CSG. API 6A PSL-2, PR-2, MATERIAL FF, TEMPERATURE “U”. |
| 14 | 1 | RING GASKET. API TYPE BX-160, PRESSURE ENERGISED STEEL |
| 15 | 1 | VALVE REMOVAL PLUG, 1-1/2″ VEE TBG THD. |
| 16 | 1 | CSG HANGER : IC-2 13 5/8″ X 9 5/8″ WITH SEAL,API 6A, PSL-2, PR-2, MATERIAL FF, TEMPERATURE “U”. |
| 17 | 16 | STUDS , CONT. THD 1.625″-8 X 12.5″ LONG WITH NUTS |
| 18 | 32 | NUTS HEAVY-HEX 1.625″-8 |
| 19 | 2 | GATE VALVE: 2 1/16″-5K WITH DOUBLE FLANGE ENDS, PSL-2, PR-2, MATERIAL-FF, TEMP “U”. |
| 20 | 2 | RECESSED BLIND FLANGE 2 1/16″ API 5K WITH 2″ L.P WITH 1/2″ NPT. |
| 21 | 1 | NEEDLE VALVE, ANGLE, 5K PSI WP, 1/2″ NPT MALE THREAD INLET X FEMALE THREAD OUTLET |
| 22 | 1 | GAUGE PRESSURE 5K PSI, 4-1/2″ DIAMETER. 1/2″ NPT. |
| 23 | 3 | RING GASKET RX-24 |
| 24 | 8 | STUDS , CONT. THD , 0.875”-9 X 6” LONG |
| 25 | 16 | NUTS HEAVY-HEX 0.875″-9 |
| 26 | 1 Each | TEST PLUG AND WEAR BUSHING , CONNECTION 4-1/2” IF FOR 13-5/8” CASING HEAD SPOOL |
| CASING SPOOL: 13 5/8″ 5K X 11″ 5K. | ||
| 27 | 1 | CSG SPOOL: IC-2-L, 13-5/8″ 5K X 11″ 5K WITH TWO # 2-1/16″ 5K STUDDED OUTLETS, VR THREAD WITH DOUBLE PRESSURE “P” SEALS TO SEAL ON 9-5/8″ CSG OD. API 6A PSL-3, PR-2, MATERIAL FF, TEMPERATURE “U”. |
| 28 | 2 | RING GASKET, API, RX-54 |
| 29 | 1 | CSG HANGER TYPE IC-2, 11″ X 7″ WITH SEAL, PSL-2, PR-2, MATERIAL FF, TEMPERATURE U. |
| 30 | 1 EACH | DUAL SPLIT TYPE TUBING HANGER WITH TUBINGS SIZE 3-1/2″ AND 2-7/8” WITH TOP FLANGE SIZE 11″ |
| 31 | 2 | GATE VALVE: 2-1/16″ 5K WITH DOUBLE FLANGE ENDS, PSL-2, PR-2, MATERIAL-FF, TEMP “U”. |
| 32 | 1 | NEEDLE VALVE, ANGLE, 5K PSI WP, 1/2″ NPT |
| 33 | 1 | VALVE REMOVAL PLUG, 1-1/2″ VEE TBG THD. |
| 34 | 12 | STUDS , CONT. THD 1.875″-8 X 13.75″ LONG |
| 35 | 24 | NUTS HEAVY-HEX 1.875″-8 |
| 36 | 2 | RECESSED BLIND FLANGE 2-1/16″ API 5K WITH 1/2″ NPT |
| 37 | 1 | GAUGE PRESSURE, 4-1/2” DIA FOR 5K PSI. |
| 38 | 3 | RING GASKET RX-24 |
| 39 | 8 | STUDS , CONT. THD , 0.875”-9 X 6” LONG |
| 40 | 16 | NUTS HEAVY-HEX 0.875″-9 |
| 41 | 1 | BACK PRESSURE VALVE FOR DUAL SPLITTER HANGER SIZE 3-1/2” AND 2-7/8” TUBINGS |
| 42 | 1 Each | TEST PLUG AND WEAR BUSHING , CONNECTION 4-1/2” IF FOR 11” CASING HEAD SPOOL |
| SR NO. | QTY | DESCRIPTION |
| TUBING SPOOL: 11″ 5K X 7-1/16″ 5K | ||
| 1 | 1 | TBG SPOOL: 11″-5K X 7-1/16″-5K WITH TWO # 2-1/16″ 5-K STUDDED OUTLETS. VR THD OUTLETS WITH DOUBLE PRESSURE”P ” SEAL BTM FOR 7″ CSG. API 6A PSL-2, PR-2, MATERIAL FF, TEMPERATURE “U”. |
| 2 | 1 | RING GASKET RX-46 |
| 3 | 1 | TBG HANGER : 7-1/16” X 3-1/2” WITH SEAL PSL-2, PR-2, MATERIAL FF, TEMPERATURE U. |
| 4 | 2 | GATE VALVE: 2 1/16″ 5K WITH DOUBLE FLANGE ENDS, PSL-2, PR-2, MATERIAL-FF, TEMP “U”. |
| 5 | 1 | NEEDLE VALVE, ANGLE, 5K PSI WP, 1/2″ NPT MALE THREAD INLET X FEMALE THREAD OUTLET |
| 6 | 12 | STUDS , CONT. THD 1-3/8″ X 10-3/4″ LONG |
| 7 | 1 | GAUGE PRESSURE, 4-1/2” DIA FOR 5K PSI. |
| 8 | 24 | NUTS HEAVY-HEX 1-3/8” |
| 9 | 1 Each | TEST PLUG AND WEAR BUSHING , CONNECTION 3-1/2” IF FOR 7-1/16” TUBING HEAD SPOOL |
| 10 | 2 | RECESSED BLIND FLANGE 2 1/16″ API 5K WITH 1/2″ NPT |
| 11 | 2 | RING GASKET: |
| 12 | 24 | STUDS , CONT. THD , 0.875”-9 X 6” LONG |
| 13 | 48 | NUTS HEAVY-HEX 0.875″-9 |
| 14 | 1 | BACK PRESSURE VALVE FOR TUBING HANGER 3-1/2” |

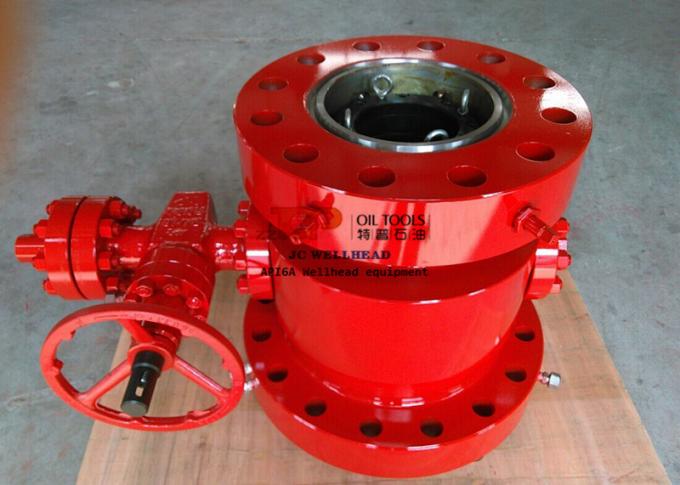

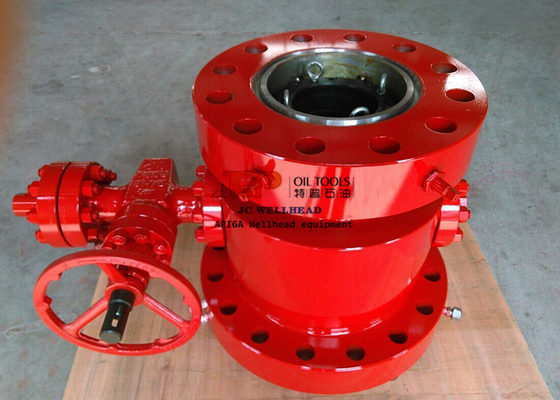

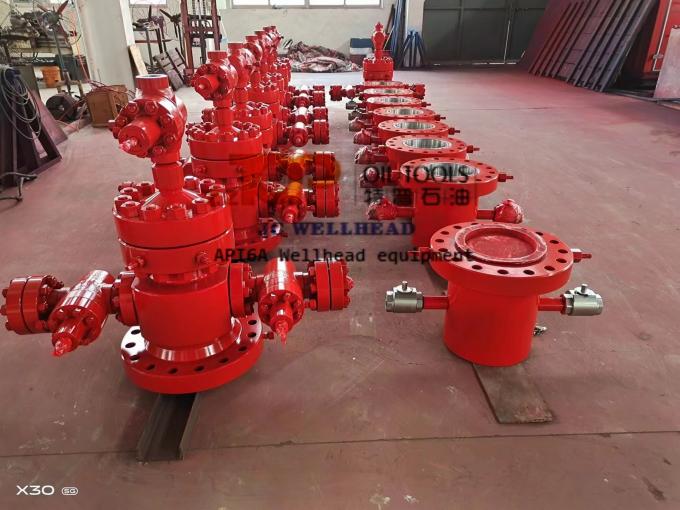

Wellhead Casing Head
Oil Gas Well Casing Head With Casing Hanger For Wellhead Equipment API 6A
Application:Oil well drilling operation
Usage:Wellhead Equipment
Material Class:DD
API 6A Casing Head Suitable For Oil Gas Well Drilling Operation
Surface Treatment:Painting
Flange Connection:Welded
Material:Alloy Steel
11`` X 11`` X 5`` - 3000 PSI Wellhead Casing Head Spool Forging Process
Application:Oil well drilling operation
Usage:Oil well flow control
Material Class:BB
3000 Psi Forging Wellhead Casing Head Housing 11`` X 9 5/8`` SOW X 7`` AA PU PSL2 PR2
Application:Oil well drilling operation
Usage:Wellhead Equipment
Material Class:BB
Forging Tubing Head Spool 11`` X 7 1/16`` X 3 1/8`` X 3 1/2`` EUE Top Botto 3000 PSI
Application:Oil well drilling operation
Usage:Wellhead Equipment For Flow Control
Material Class:AA
API 6A Wellhead Casing Head Spool 11”-3000PSI X 11” 5000PSI
Application:Oil & Gas Well Drilling Operation
Usage:Wellhead Casing Head Connection
Material Class:DD-NL
Oil Well Service Wellhead Casing Head / Tubing Head API 6A
Application:Oil & Gas Well Drilling Operation
Usage:Wellhead Equipment
Material Class:DD-NL
Wellhead Equipment Braden Head 20 3/4`` 3M Flanged Top API 6A
Application:Oil & Gas Well Drilling Operation
Usage:Wellhead Equipment
Material Class:DD-NL
8RD API 6A C22 Casing Head Housing 13 5/8``-3 K X 13 3/8``
Application:Oil & Gas Well Drilling Operation
Usage:Wellhead Equipment
Material Class:DD-NL
PLS 3 Multi Bowl / Split Unihead / Compact Type Casing And Tubing Head Assy
Application:Oil & Gas Well Drilling Operation
Usage:Wellhead Pressure Control
Material Class:DD-NL
API 6A Oil Gas Wellhead Casing Hanger Spool For Flow Control
Application:Oil Well Drilling / Completion / Testing Operation
Usage:Wellhead Flow Control Equipment
Material Class:DD-NL
Oil Well Drilling Wellhead Casing Head For Single Completion 7/8`` X
Application:Wellhead Flow Control Equipment
Usage:Oil Well Drilling / Completion Operation
Material Class:DD-NL
Oil Well Drilling Wellhead Casing Head For Single Completion 7/8`` X
Description
| Application: | Wellhead Flow Control Equipment | Usage: | Oil Well Drilling / Completion Operation |
| Material Class: | DD-NL | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Casing Head And Tubing Head | Working Pressure: | 5000 Psi |
| Flange Size: | 9 5/8″ | Process Type: | Forging |
| Highlight: | Single Completion Tubing Head, 7/8″ X Casing Spool Wellhead, Oil Well Drilling Casing Spool | ||
Complete Wellhead For Single completion 9 5/8``x 5 1/2``x 2 7/8`` x 5000psi Casing Head
Casing Head is the very important equipment used in drilling process. The casing head in a conventional wellhead system is the lowest part of the wellhead assembly and is almost always connected to the surface casing string.casing head can control the wellhead pressure,casing head are often welded or screwed on the top of the conductor pipe or the casing then become a part of the wellhead system of the oil well.
Technical parameter for Complete Wellhead Casing Head
| 1 | Specification | 9 5/8″x5 1/2″x2 7/8″x5000psi |
| 2 | Material | AIS14130 |
| 3 | Material Class | DD-NL |
| 4 | Technical requirement | PSL-2,PR1 |
| 5 | Temperature Rating | LU |
| 6 | Including full set stud bolt and nuts. | Stud-A193/Gr B7,Nut-A194/Gr 2H |
| 7 | Including full set Ring gaskets | |
| 8 | Manufacturing standard | API6A |
| 9 | Documents Supplied | Material Certificate |
| Heat freatment Report | ||
| UT Report | ||
| PT report | ||
| Dimension Report | ||
| Pressure Test Report | ||
| COC |
Oil Well Drilling Wellhead Casing Head For Single Completion 7/8`` X
Description
| Application: | Wellhead Flow Control Equipment | Usage: | Oil Well Drilling / Completion Operation |
| Material Class: | DD-NL | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Casing Head And Tubing Head | Working Pressure: | 5000 Psi |
| Flange Size: | 9 5/8″ | Process Type: | Forging |
| Highlight: | Single Completion Tubing Head, 7/8″ X Casing Spool Wellhead, Oil Well Drilling Casing Spool | ||
Complete Wellhead For Single completion 9 5/8``x 5 1/2``x 2 7/8`` x 5000psi Casing Head
Casing Head is the very important equipment used in drilling process. The casing head in a conventional wellhead system is the lowest part of the wellhead assembly and is almost always connected to the surface casing string.casing head can control the wellhead pressure,casing head are often welded or screwed on the top of the conductor pipe or the casing then become a part of the wellhead system of the oil well.
Technical parameter for Complete Wellhead Casing Head
| 1 | Specification | 9 5/8″x5 1/2″x2 7/8″x5000psi |
| 2 | Material | AIS14130 |
| 3 | Material Class | DD-NL |
| 4 | Technical requirement | PSL-2,PR1 |
| 5 | Temperature Rating | LU |
| 6 | Including full set stud bolt and nuts. | Stud-A193/Gr B7,Nut-A194/Gr 2H |
| 7 | Including full set Ring gaskets | |
| 8 | Manufacturing standard | API6A |
| 9 | Documents Supplied | Material Certificate |
| Heat freatment Report | ||
| UT Report | ||
| PT report | ||
| Dimension Report | ||
| Pressure Test Report | ||
| COC |
API 6A Casing Head Suitable For Oil Gas Well Drilling Operation
Description
| Surface Treatment: | Painting | Flange Connection: | Welded |
| Material: | Alloy Steel | Flange Material: | Alloy Steel |
| Size: | 36”X 13-3/8”X 9 5/8″ | Flange Rating: | 2000psi |
| Standard: | API 6A | Flange Type: | Weld Neck |
| Highlight: | Painting Wellhead Casing Head, API 6A Casing Head, Gas Well Drilling Casing Head | ||
Product Description:
Wellhead Casing Head is a high pressure-rated casing hanger housing designed to support and hang the casing string in a well. It is rated up to 2000psi and is available in API thread type and 13 3/8`` flange connection with welded and painted surface treatments. It is a robust and reliable casing hanger housing that provides an excellent seal to the wellhead and is ideal for high-pressure applications. The wellhead casing head is designed to provide superior performance and reliability, ensuring a safe and secure seal for the wellhead. It is made from high quality materials and is designed to withstand extreme conditions. It is an effective and efficient casing hanger housing that helps to keep the wellhead safe and secure.
Features:
- Product Name: Wellhead Casing Head
- Flange Material: Alloy Steel
- Thread Type: API
- Flange Standard: API 6A
- Flange Surface Treatment: Painting
- Flange Connection: Welded
Technical Parameters:
| 1 | EQUIPMENT – 5Kpsi SPLITTER WELLHEADS ( (2 IN 1) wellhead systems for 36”X 13-3/8”X 9 5/8 Casing scheme and 4 ½” (Single String Completion System) |
| 1.1 | LOWER HOUSING 36″ CSW 2. IN 1., 36″ SLIPLOCK BTM, C/W DBL “WQ” SEALS, W/ 20″ NOM. 2,000 PSI WP ‘D’ SHAPED STUDDED TOP PROFILE W/ TWO 20″ NOM. HANGER BOWL PREP. (20.500″ CENTERS) FOR 13-3/8″ O.D. CSG AND TWO 2″ LP SIDE OUTLETS AND TWO 2″ LP MONITOR PORTS COMPLETE WITH BULL PLUG AND 1/2″ BLEEDER PLUG |
| 1.2 | CASING HANGER 20″ X 13.3/8″ BODY, FLUTED MANDREL CASING HANGER, 20IN NOM.3000 PSI, 13-3/8IN 68 LB/FT TSH BLUE BOX THD BTM X16.500-2TPI LH STUB ACME THD TOP, W/ 13-3/8IN OD SLICKNECK AND FOUR FLOW-BY SLOTS; MIN BORE: 12.360INAPI 6A; PSL-2; M/C: DD-NL; T/C: S,T,U,VBODY MATERIAL: 4140 LAS, 80KSI YS |
| 1.3 | COMPACT SPOOL ASSEMBLY 13-5/8 NOM, TYPE ‘SSMC’ TWO STAGE, 20 NOM. OEC 2000 PSI PSI ‘D’ SHAPED FLANGE BTM. W/ 13-3/8 DOUBLE ‘T’ SEAL BTM. X 13-5/8 NOM. API 5000 PSI ‘JB’ TOP CONNECTION W/ 13-5/8 ‘SRL’ SEAL PREP TOP |
| 1.4 | TEMPORARY ABANDONMENT CAP 20 NOM ‘D-SHAPED’ FLANGE BTM W/13-3/8 DBL ‘T’ SEAL AND DBL O-RING SEAL OD. (2,000 PSI MAX WP), COMPLETED W/ 2″ LP BULL PLUG & 1/2 NPT BLEEDER PLUG. API 6A 21ST EDITION, PSL 2, T/C: U, M/C: DD-NL;BODY MAT’L: AISI 4130 75 KSI YS. |
| 1.5 | CASING HANGER 13.5/8″ X 9.5/8″ CSG HGR, 13-5/8 NOM X 9-5/8 47PPFT TENARIS BLUE BOX THD BTM X 11.500 2TPI LEFT HAND STUB ACME THD TOP W/SLICK NECK FOR SEALS; RATED WORKING PRESSURE: 6,500 PSI; API 6A 21ST ED; M/C:AA,DD-NL; T/C:U; PSL-3; PR2; GROUP 1; MIN BORE: 8.647 |
| 1.6 | TUBING HANGER 13.5/8″ X 4.1/2″ ASSEMBLY, TUBING HANGER, TYPE ‘SSMC’, 13-5/8″ NOM, W/ TWO ‘LS’ SEALS X 4-1/2″ 12.6 LB/FT TOP BOX THD BTM, 6-1/16″ EXTENDED SLICK NECK TOP W/ 6.375″-4-STUB ACME RIGHT HAND RUNNING THREAD, PREPARED WITH 4″ NOM TYPE ‘H’ BPV PROFILE, W/ FIVE 1/4″ CONTINUOUS CONTROL LINE C/W PIPE PLUGS. 3.90″ MIN. BORE; API 6A 21ST EDITION, MATERIAL CLASS: EE-1.5, FF-1.5, TEMPERATURE RATING: U, PSL-2, PR-2, BODY MAT’L: SS 410 80K YS |
Forging Tubing Head Spool 11`` X 7 1/16`` X 3 1/8`` X 3 1/2`` EUE Top Botto 3000 PSI
Description
| Application: | Oil Well Drilling Operation | Usage: | Wellhead Equipment For Flow Control |
| Material Class: | AA | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Tubing Head Spool | Working Pressure: | 3000 Psi |
| Flange Size: | 11″ X 7 1/16″ X 3 1/8″ X 3 1/2″ EUE | Process Type: | Forging |
| Highlight: | 3000 PSI Tubing Head Spool, Forging Tubing Head Spool, Tubing Wellhead Casing Head | ||

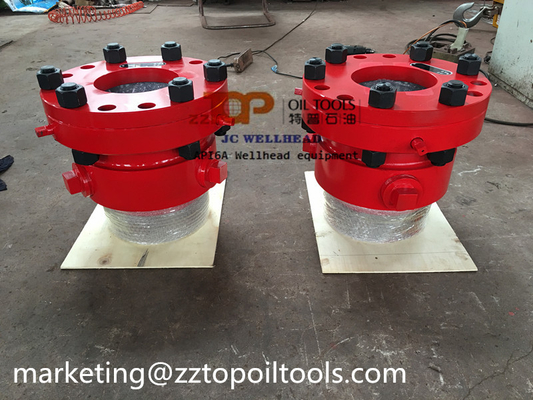

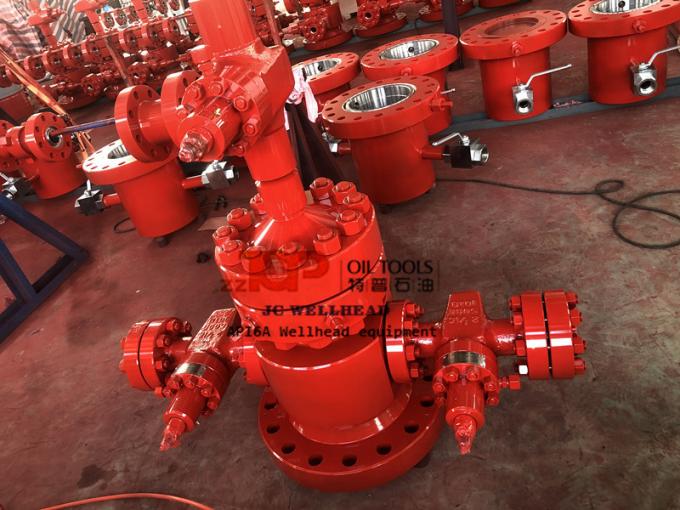

Tubing Head Spool 11`` x 7 1/16`` x 3 1/8`` x 3 1/2``EUE top&bottom - 3000 PSI, AA, PU, PSL2, PR2
The tubing head spools for oil & gas well operation are designed and manufactured strictly according to API 6A, NACE MR-0175 standard. The Tubing head is a spool with flange top, flanged bottom and two side outlets. It also can be called tubing spool.
Features of Tubing Head Spool
- Tubing head spool features a versatile straight bore design for single and multiple completions
- Tubing hanger and top flange of the tubing head spool are designed to run cable through.
- Several control ports are available for connecting pipeline.
- The tubing head spool is made of forged or special smelt steel, providing high bearing strength, safety and reliability.
Specification of Tubing Head Spool
| SECTION C : Tubing Head Spool 11″ x 7 1/16″ x 3 1/8″ x 3 1/2″EUE top&bottom – 3000 PSI, AA, PU, PSL2, PR2 | |||
| 1 | Tubing Head Spool 11″ x 3000 PSI WP flanged bottom – 7 1/16″ x 3000 PSI WP flanged top, with two 2 1/16″ x 3000 PSI studded side outlets studs & nuts included, with thread 1 1/2″LP for VR plug, 45º landing shoulder for tubing hanger area, c/w lock down screws with lock down threads outside from the fluid well area, prepared to receive wear bushing. |
1 | API 6A 60K- AA A487-4C |
| 2 | Tubing Hanger, with extended neck, double sealing: – 7 1/16″ x 3 1/2″EUE top&bottom – with thread 3″ HBPV-UZT-LH |
1 | API 6A 75K- AA AISI 4130 |
| 3 | 5″ Double “P” Seal | 1 | API 6A 75K- AA NBR |
| 4 | Gate Valve 2 1/16″ – 3000 PSI WP, flanged ends, full bore, through conduit, hand-wheel operated. | 2 | API 6A 60K- AA A487-4C Trim AA |
| 5 | Companion Flange 2 1/16″ x 2″LP – 3000 PSI. | 1 | API 6A 60K- AA AISI 4130 |
| 6 | Blind Flange 2 1/16″ – 3000 PSI. | 1 | API 6A 60K- AA AISI 4130 |
| 7 | Bull Plug 2″LP – 1/2″-14NPT | 1 | API 6A 60K- AA AISI 4130 |
| 8 | Needle Valve ½” NPT male x female – 10000 PSI WP | 1 | – |
| 9 | Pressure Gauge, 0…3000 PSI, 4 ½” or 6 ¼” face | 1 | – |
| 10 | Ring Gasket API R45, Cd or Zn plated, for 7 1/16″ x 3000 PSI Flange | 1 | API-6A/S4 |
| 11 | Ring Gasket API R31, Cd or Zn plated, for 3 1/8″ x 3000 PSI Flange | 1 | API-6A/S4 |
| 12 | Ring Gasket API R24, Cd or Zn plated, for 2 1/16″ x 3000 PSI Flange | 4 | API-6A/S4 |
| 13 | Set of Studs with two Nuts for 2 1/16″ x 3000 PSI Flange | 2 | API 20E- BSL1 B7/2H |
| SECTION D : Tubing Head Adapter 7 1/16″ x 3 1/8″ – 3000 PSI, AA, PU, PSL2, PR2 | |||
| 1 | Tubing Head Adapter 7 1/16″ x 3000 PSI WP flanged bottom – 3 1/8″ x 3000 PSI WP studded top, (including studs & nuts), prepared for the above extended neck tubing hanger. | 1 | API 6A 60K- AA AISI 4130 |
| 2 | Ring Gasket API R31, Cd or Zn plated, for 3 1/8″ x 3000 PSI Flange | 1 | API-6A/S4 |
| 3 | Set of Studs with two Nuts for 7 1/16″ x 3000 PSI Flange | 1 | API 20E- BSL1 B7/2H |

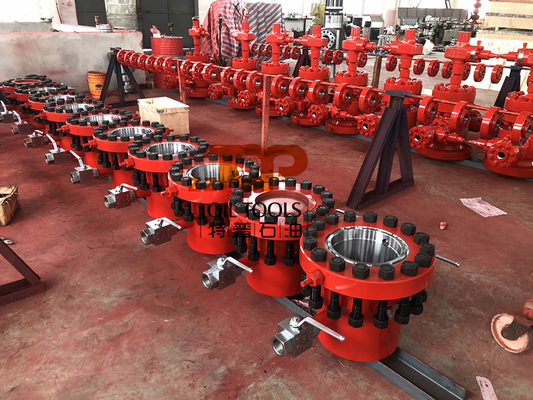

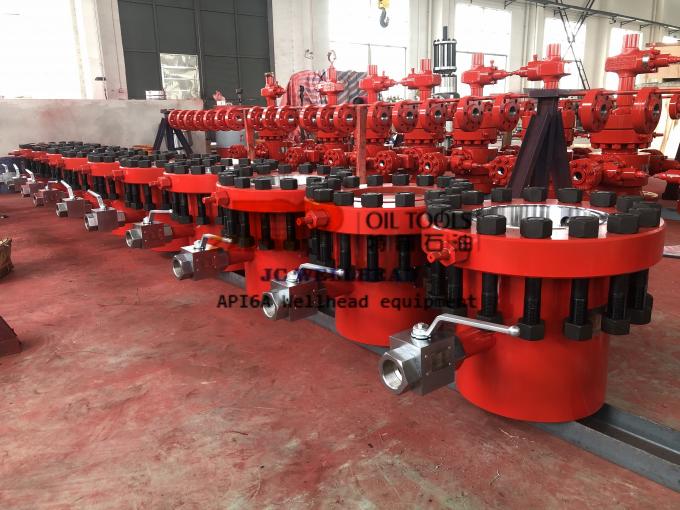

API 6A Wellhead Casing Head Spool 11”-3000PSI X 11” 5000PSI
Description
| Application: | Oil & Gas Well Drilling Operation | Usage: | Wellhead Casing Head Connection |
| Material Class: | DD-NL | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Casing Head Spool Assembly | Working Pressure: | 3000 Psi X 5000 Psi |
| Nominal Flange Size: | 11″ | Process Type: | Forging |
| Highlight: | Wellhead Casing Head Spool API 6A, 3000PSI Wellhead Casing Head, Forging Casing Head Spool | ||
Wellhead Casing Head Spool / Casing Spool API 6A 11”-3000PSI x 11” 5000PSI,
Normally the wellhead is composed of the casing head, casing spool, and tubing head. Casing spools feature a versatile straight bore design that can accept a wide variety of slip and mandrel type casing hangers.The casing head spool is used to connect layers of casing and to seal the gap between the layers of casing, to support the BOP stack when drilling, and to hold the tubing head and Christmas tree after completion.
Ordered Specification of Wellhead Casing Head and Tubing Head
| No. | P.N. | Description | Qty | Unit |
| 1 | 0pt.1 | Casing HeadS pool, 11-3000PSIx 11″5000PSI, Secondary Seal PESeal Assy 7 Casing, Each casing heads pool includes: 1.Casing heads pool body-11″-3000psix 11″-5000psi 2.Manual Gate Valve, 21/16-5000psix 2, Forged type. 3.11″x 4 1/2″ C22 Casing Hanger x 1 4.7″PE Seal Assy x 1 5.Lock-down screw x 4(Upper flange) 6.Companion flange 2 1/16-5000psix 2″LPx 2, 4130 forged 7.7/8″ Stud bolt wth 2nuts- 16sets 8.7/8″ Taper bolt with1nut-16sets 9.Ring gasket R24x 4 |
1 | set |
| 2 | Opt. 2 | Casing HeadS pool, 11-3000PSIx 11″5000PSI, Sec and ary Seal FSSeal 7*Casing.Each casing heads pool includes: 1.Casing heads pool body-11″-3000psix 11″-5000psi 2.Manual Gate Valve, 21/16-5000psix 2, Forged type. 3.11″x 41/2” C22 Casing Hangerx 1 4.7″FS Seal Assy x 2 5.Lock-down screw x 4(Upper flange) 6.Companion flange 21/16-5000psix 2″LPx 2, 4130 forged 7.7/8″Studboltwith2nuts-16sets 8.7/8Taperboltwith1nut-16sets 9.Ring gasket R24x 4 |
1 | Set |

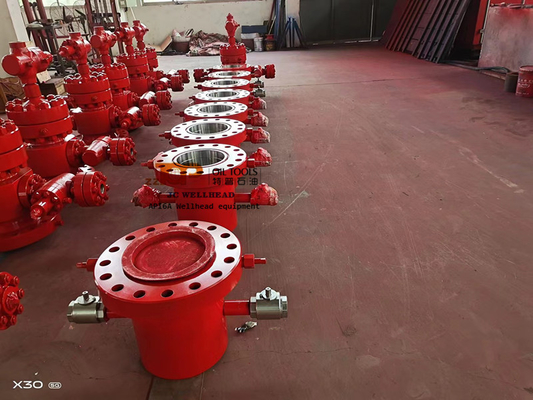

8RD API 6A C22 Casing Head Housing 13 5/8``-3 K X 13 3/8``
Description
| Application: | Oil & Gas Well Drilling Operation | Usage: | Wellhead Equipment |
| Material Class: | DD-NL | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Casing Head And Tubing Head | Working Pressure: | 3000 Psi |
| Nominal Bore: | 13 5/8″-3 K X 13 3/8″ 8RD | Process Type: | Forging |
| Highlight: | C22 Casing Head Housing, 8RD Casing Head Housing, Wellhead Casing Head Spool Housing | ||

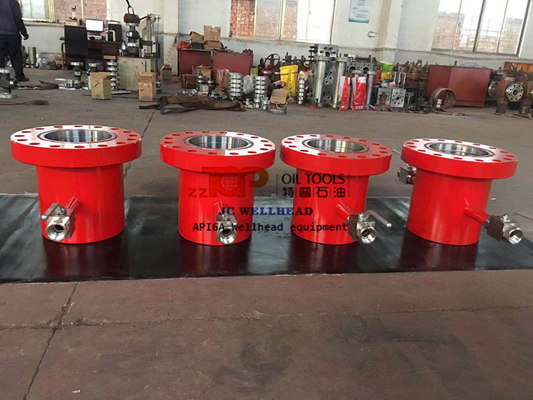

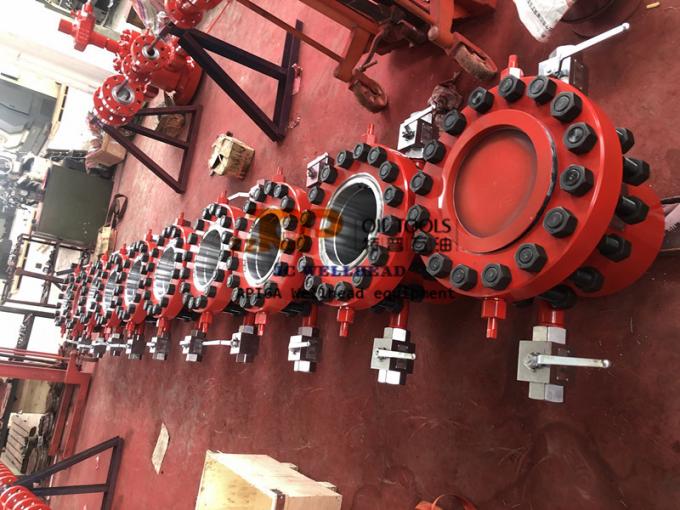

Casing Head Housing 13 5/8``-3 K x 13 3/8`` 8RD API 6A C22 Casing Head
Casing Head 13 5/8``-3 K is the component of wellhead equipment used in oil well drilling operation. The casing head in a conventional wellhead system is the lowest part of the wellhead assembly and is almost always connected to the surface casing string.casing head can control the wellhead pressure,casing head are often welded or screwed on the top of the conductor pipe or the casing then become a part of the wellhead system of the oil well.
Ordered Part List of Wellhead Casing Head
| No | Part Number | Description | Qty |
| 1 | TF35-28-21-01 | Casing Head Housing 13 5/8*-3 K x 13 3/8″ 8RD | 1 |
| 2 | TF35-28-21-02 | Nipple 2LP | 2 |
| 3 | BV2″LP-5K | Ball Valve Assy 2″LP5K | 2 |
| 4 | TF35-28-21-03 | Casing Hanger C 2295/B” | 1 |
| 5 | SY/T5127-2002 | Stud Bolt 13/8″x 10.8*B 7 | 20 |
| 6 | SY/T5127-2002 | Nut 13/8″2H | 40 |
| 7 | TF35-28-21-04 | Tie-down screw assembly | 8 |
| 8 | ST/T5127-2002 | Ring Gasket R 57 | 1 |
| 9 | TF35-28-21-05 | Retainer Ring | 1 |
| 10 | TF35-28-21-06 | Lower Retainer | 1 |
| 11 | PE Seal 95/8* | 1 | |
| 12 | TF35-28-21-07 | Upper Retainer | 1 |
| 13 | SY/T5127-2002 | Stud bolt, 7/8″x 6.35″B 7 | 16 |
| 14 | SY/T5127-2002 | Nut 7/8″2H | 48 |
| 15 | SY/T5127-2002 | Ring Gasket R 24 | 4 |
| 16 | 52-21×2″LP | Companion Flange | 2 |
| 17 | EVA 52-35-00 | Expanding Gate Valve | 2 |
| 18 | SY/T5127-2002 | Taper end bolt, 7/8″x 4.3″B 7 | 16 |
| 19 | TF35-28-21-08 | Casing hanger C 22, 7″ | 1 |
| 20 | TF35-28-21-09 | Casing head housing 135/8″-5Kx1f-5K | 1 |
| 21 | TF35-28-21-10 | Tie-down screw assembly | 4 |
| 22 | SY/T5127-2002 | Stud bolt.13/8″x 10*B 7 | 16 |
| 23 | SY/T5127-2002 | Nut 13/8″2H | 32 |
| 24 | SY/T5127-2002 | Ring gasket R 53 | 1 |
| 25 | Test Plug&Retrieval Tool 135/B”-3K | 1 | |
| 26 | Wear Bushing 135/8″-3K | 1 | |
| 27 | Test Plug&Retrieval To ol1f*-3K | 1 | |
| 28 | Wear Bushing 11″-3K | 1 |
PLS 3 Multi Bowl / Split Unihead / Compact Type Casing And Tubing Head Assy
Description
| Application: | Oil & Gas Well Drilling Operation | Usage: | Wellhead Pressure Control |
| Material Class: | DD-NL | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Casing Head Spool Assembly | Working Pressure: | 3000 Psi |
| Nominal Flange Size: | 20 3/4″ | Process Type: | Forging |
| Highlight: | Compact Type Casing And Tubing Head, API 6A Multi Bowl Tubing Head, Split Unihead Casing Head PLS 3 | ||

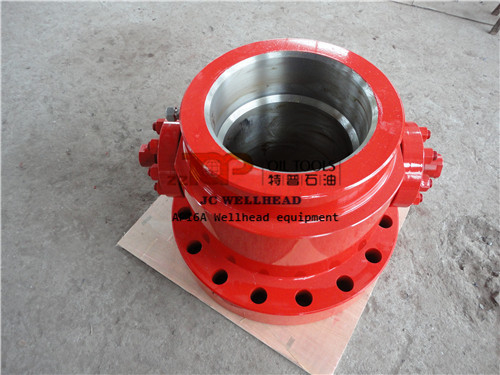

Multi Bowl/Split Unihead / Compact type Casing and Tubing Head Assy
The oil well casing heads and tubing heads are designed and manufactured strictly according to API 6A, NACE MR-0175 standard, the casing head housing is the component of wellhead equipment and called wellhead ``A``section, starting Head, lower-most housing or Braden head and connected with the wellhead Christimas treel. It is the first piece of wellhead component installed at bottom.
The Tubing head is the important parts of the wellhead equipment and connected with Christimas Tree, the buging head is designed with universal straight hold and conformed with API 6A Specification, which can be fitted with all types of single or double-string completion tubing hanger.
Wellhead Product scope
| Wellhead valves | Gate Valves, Plug Valves, Choke Valves, Check Valves,
Mud Valves and various wellhead valve parts etc. |
| Wellhead Manifold | Choke and Kill Manifold, Drilling Floor Manifold, Fracturing manifold,
Well Testing Manifold. |
| Wellhead Equipment | Wellhead Christmas Tree / XTree, Casing Head, Casing Hanger,
Tubing Head,Tubing Hanger, Casing Spool, Tubing Spool, Drilling Spool etc. |
| Wellhead Adapter | Spacer Spool / Riser Spool ,Flange Adapter, Union Flange,
Double Studded Adapter Flange, Welded Neck Flange, Blind Flange, Companion Flange, Instrument Flange,Wellhead Clamp & Hub etc. |
| Wellhead Integral Fittings | Hammer Union, Elbow, Swivel Joint, Block Cross, Block Tee,
Straight Pipe, Pipe Loops etc. |
| Well Control Equipment | Annular BOP, RAM BOP, Sucker Rod BOP, BOP Stack, Wireline BOP etc |
| Surface Well Testing Package | Surface Test Tree (Flowhead), Surface Safety Valve(SSV), ESD System,
Data Header, Choke Manifold, Oil Diverter manifolds, Gas Diverter Manifold |
Multi Bowl/Split Unihead type Casing and Tubing Head Assembly consisting of
| 1 | Lower Spool 13 5/8″ 5M Flanged top × 20 ¾ ” 3M flanged bottom, two 2 1/16 ” 5M studded, 1 ½” LP VR Plug threaded Side Outlets. |
| 2 | Top Spool 13 5/8 ” 5M top × 13 5/8 ” 5M bottom 2 1/16 ” 5M studded, 1 ½ ” LP VR Plug threaded Side Outlets. |
| 3 | Bottom flange of bottom spool fitted with Seal for extended neck of 13 3/8″ casing, top housing for landing Mandrel type standard Hanger and Seal or emergency Slip and Seal assembly for 9⅝” Casing. |
| 4 | Top Spool bottom flange prepared for secondary seal of extended neck of 9 5/8 ” Mandrel Hanger/ Casing, top housing to land 13⅝” nom. Tubing Hanger and Seals, Lock Down Screws. |
| 5 | API spec. 6A latest edition, Material Class ‘BB’, Temperature Level ‘U’, PSL-4. |
| 6 | Tubing Hanger: Extended Neck Type Tubing Hanger and Seals, 13 ⅝” 5M, Matching with Multi Bowl Upper Housing, 3½², 9.2 lb/ft, N/L-80, Vam Top box up x pin down connection . 4″ Cameron type ‘H’ BPV thread profile and ¼ ” NPT SCSSSV control line port complete with Seals. API spec. 6A latest edition, Material Class ‘BB’, Temperature Level ‘U’, PSL-4. |
| 7 | Test plugs to seat in Lower Housing, 4 ½ IF Box Up × Pin Down Connection complete with seals. API spec. 6A latest edition, Material Class ‘BB’, Temperature Level ‘U’, PSL-4. |
| 8 | Mandrel Casing Hanger for 9 5/8 ” Casing, 9 5/8 “, 43.50 lb/ft Premium Box Down connection HSM-2 to land in lower spool housing (with Seals if required) API spec. 6A latest edition, Material Class ‘BB’, Temperature Level ‘U’, PSL-4. |
| 9 | Gate Valve: 2 1/16″ 5M manual Gate Valves, Bi-Directional Flow with hand wheels. API spec. 6A latest edition, Material Class ‘BB’, Temperature Level ‘U’, PSL-4, PR2, Appendix ‘F’. |
| 10 | Blind Flange: 2 1/16″ 5M blind flange, ½ ” NPT tapped. API spec. 6A latest edition, Material Class ‘BB’, Temperature Level ‘U’, PSL-4. ( 2 no. fitted, 2 no. loose) |
| 11 | Adapter: 2 1/16″ 5M flange, 2″ fig 1502 Integral Weco Union fitted with Blind Pin Plug. API spec. 6A latest edition, Material Class ‘BB’, Temperature Level ‘U’, PSL-4.( supply loose) |
| 12 | Adapter Integral, 2 1/16 ” 5M flanged with 2″ fig 1502 Weco Union with Blind Pin Plug. API spec. 6A latest edition, Material Class ‘BB’, Temperature Level ‘U’, PSL-4. ( loose) |
Wellhead Product scope
| Wellhead valves | Gate Valves, Plug Valves, Choke Valves, Check Valves,
Mud Valves and various wellhead valve parts etc. |
| Wellhead Manifold | Choke and Kill Manifold, Drilling Floor Manifold,
Fracturing manifold, Well Testing Manifold. |
| Wellhead Equipment | Wellhead Christmas Tree / XTree, Casing Head,
Casing Hanger, Tubing Head,Tubing Hanger, Casing Spool, Tubing Spool, Drilling Spool etc. |
| Wellhead Adapter | Spacer Spool / Riser Spool ,Flange Adapter, Union Flange,
Double Studded Adapter Flange, Welded Neck Flange, Blind Flange,Companion Flange, Instrument Flange,Wellhead Clamp & Hub etc. |
| Wellhead Integral Fittings | Hammer Union, Elbow, Swivel Joint, Block Cross, Block Tee, Straight Pipe, Pipe Loops etc. |
| Well Control Equipment | Annular BOP, RAM BOP, Sucker Rod BOP, BOP Stack, Wireline BOP etc |
| Surface Well Testing Package | Surface Test Tree (Flowhead), Surface Safety Valve(SSV),
ESD System, Data Header, Choke Manifold, Oil Diverter manifolds, Gas Diverter Manifold |
