10000 Psi Swivel Tee Fitting, Wellhead Crossover Customized Design Available
$0.00
10000 Psi Swivel Tee Fitting , Wellhead Crossover Customized Design Available
Description
| Application: | Wellhead Manifold | Usage: | Wellhead Pipeline Connection |
| Material: | Alloy Steel Forging | Production Level: | PLS 3 |
| Production Level: | PR1 | Standard: | API 6A |
| Product Name: | Wellhead Integral Pipe Fitting | Size: | 2″ |
| Working Pressure: | 10000 Psi | Working Condiction: | Standard Serive Or Sour Service |
| Highlight: | high pressure pipe fittings, wellhead connector | ||

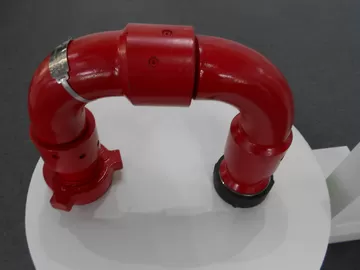

API 6A Wellhead Integral Pipe Fittings Swivel Joint / Tee / Wellhead Crossover
Wellhead Integral Fittings are manufactured according to API 6A standard, and used for connecting surface manifold. The wellhead integral Fittings are forged from high strength alloy steel, handled by advanced heat treatment technology and conducted strict factory quality control. Two type of end connections are available including union or thread.

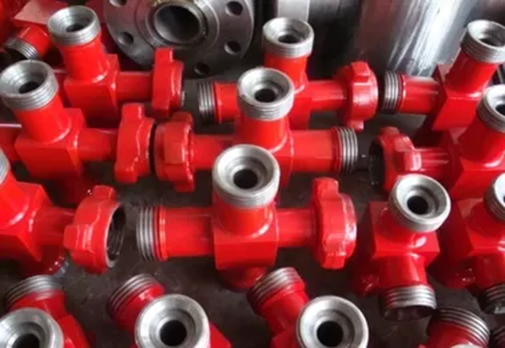

Many types are available including tees, laterals, wyes, long radius swivels, ells, crosses, adapters and union plugs. We also offer customized design
Specification of wellhead integral pipe fitting
| No | Description | Unit of Measure | Quantity |
| 1 | FLOW LINE PIPE,3000PSI,3″,10FT Flowline pipe,3000psi, Length 10Ft, size (in)3″,integral designs (wing union). | Nos | 21 |
| 2 | HP SWIVEL JOINT 3″,3000PSI, Style 10 Swivel joint, style 10 MDL. BSR-6 fitted with nipple and with male & female union ends. Thread – 602, 3000psi | Nos | 23 |
| 4 | FLOW LINE CHECK VLV,2″,6000PSI,F/M FLOW LINE CHECK VALVE, valve size(in)2″,6000psi, inlet – female, outlet – male, standard flow, | Nos | 2 |
| 5 | CROSSOVER 2 7/8″ EUE8RD-3″,3000PSI,F PIPE THREAD TO WING UNION INTEGRAL SWAGE 2 7/8″ EUE 8 RD -3″ ,3000psi ,FEMALE | Nos | 1 |
| 6 | CROSSOVER 4 1/2″ EUE8RD-3″,3000PSI,F INTEGRAL CONNECTION,CROSSOVER,PIPE THREAD TO WING UNION INTEGRAL SWAGE size(in),4 1/2″ EUE 8 RD – 3″, 3000psi,FEMALE | Nos | 13 |
| 7 | CROSSOVER 3 1/2″ EUE8RD-3″,3000PSI,F INTEGRAL CONNECTION,CROSSOVER,PIPE THREAD TO WING UNION INTEGRAL SWAGE size(in),,3 1/2″ EUE 8 RD – 3″,3000psi,FEMALE | Nos | 1 |
| 8 | CROSSOVER 4 1/2″ EUE8RD-3″,3000PSI,M INTEGRAL CONNECTION,CROSSOVER,PIPE THREAD TO WING UNION INTEGRAL SWAGE size(in),4 1/2″ EUE 8 RD -3″,3000psi,MALE | Nos | 11 |
| 9 | CROSSOVER 3 1/2″ EUE8RD-3″,3000PSI,M INTEGRAL CONNECTION,CROSSOVER,PIPE THREAD TO WING UNION INTEGRAL SWAGE size(in),3 1/2″ EUE 8 RD -3″,3000psi,MALE | Nos | 3 |
| 10 | FLOW LINE PIPE,3000PSI,3″,5FT “FLOW LINE PIPE – D -3″” PRESSURE -3000PSI LENGTH – 5FT THREAD – 602″ | Nos | 3 |
