2000psi Tubing Head Spool Model A7 7“ 8RD X 2 7/8“ EU With Tubing Hanger
$0.00
| Application: | Oilfield Wellhead Equipment | Usage: | Oil Well Drilling Flow Control |
| Material: | Class DD-NL | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Tubing Head Spool | Working Pressure: | 2000 Psi |
| Highlight: | tubing hanger spool, tubing head assembly | ||

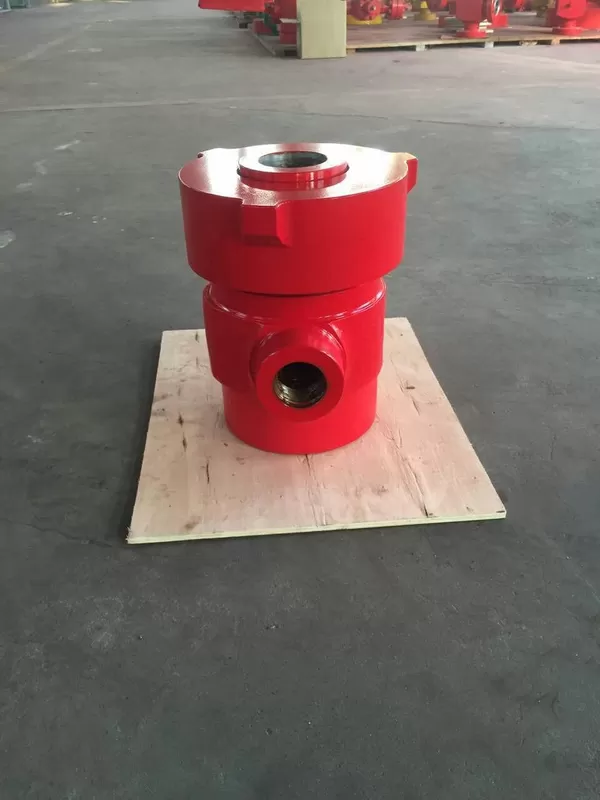

API 6A Wellhead Equipment Tubing Head Tubing Spool With Tubing Hanger
The tubing head spool with tubing hanger is designed and manufactured according API6A specification, it is the part of the oilfield wellhead equipment connected to wellhead Christmas tree. With the tubing hanger, the tubing spool is used as the tubing head in well control system, the tubing head is connected to the upper casing head with the christmas tree and applied for sealing the annular space the string and oil-layer casing.
This tubing head with simple structure, bottom connection with 7`` CSG 8rd and equipped with 2 7/8``EU tubing head on tubing hanger.
It is a dual string tubing head with 2`` LP outlets, also bottom can be slip on weld option.
Specification
| Bottom Thread | 4 1/2″ 8rd API | 5 1/2″ 8rd API | 7″ 8RD API |
| Working pressure | 2000psi | 2000psi | 2000psi |
| Test pressure | 4000psi | 4000psi | 4000psi |
| Cap thread | 8 5/8″ 8rd API | 8 5/8″ 8rd API | 8 5/8″ 8rd API |
| Inner string | 1″-3″ | 1″-3″ | 1″-3″ |
| Side outlet | 2″ LP | 2″ LP | 2″ LP |
| Min. Bore | 4″ | 4.938″ | 6.438″ |
