8RD API 6A C22 Casing Head Housing 13 5/8“-3 K X 13 3/8“
$0.00
8RD API 6A C22 Casing Head Housing 13 5/8``-3 K X 13 3/8``
Description
| Application: | Oil & Gas Well Drilling Operation | Usage: | Wellhead Equipment |
| Material Class: | DD-NL | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Casing Head And Tubing Head | Working Pressure: | 3000 Psi |
| Nominal Bore: | 13 5/8″-3 K X 13 3/8″ 8RD | Process Type: | Forging |
| Highlight: | C22 Casing Head Housing, 8RD Casing Head Housing, Wellhead Casing Head Spool Housing | ||

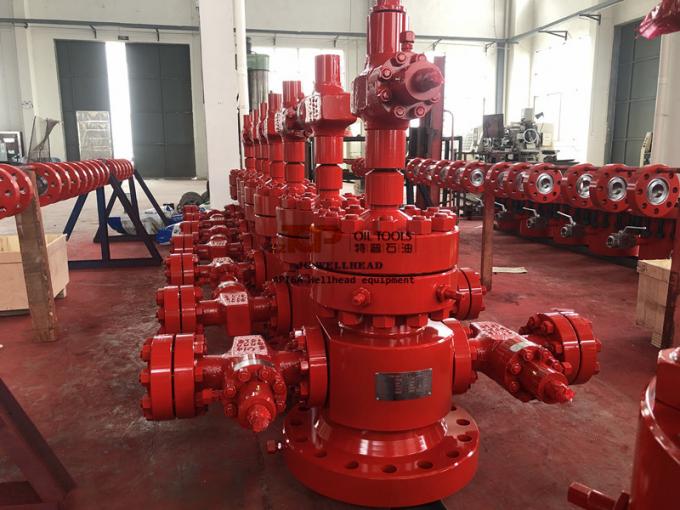

Casing Head Housing 13 5/8``-3 K x 13 3/8`` 8RD API 6A C22 Casing Head
Casing Head 13 5/8``-3 K is the component of wellhead equipment used in oil well drilling operation. The casing head in a conventional wellhead system is the lowest part of the wellhead assembly and is almost always connected to the surface casing string.casing head can control the wellhead pressure,casing head are often welded or screwed on the top of the conductor pipe or the casing then become a part of the wellhead system of the oil well.
Ordered Part List of Wellhead Casing Head
| No | Part Number | Description | Qty |
| 1 | TF35-28-21-01 | Casing Head Housing 13 5/8*-3 K x 13 3/8″ 8RD | 1 |
| 2 | TF35-28-21-02 | Nipple 2LP | 2 |
| 3 | BV2″LP-5K | Ball Valve Assy 2″LP5K | 2 |
| 4 | TF35-28-21-03 | Casing Hanger C 2295/B” | 1 |
| 5 | SY/T5127-2002 | Stud Bolt 13/8″x 10.8*B 7 | 20 |
| 6 | SY/T5127-2002 | Nut 13/8″2H | 40 |
| 7 | TF35-28-21-04 | Tie-down screw assembly | 8 |
| 8 | ST/T5127-2002 | Ring Gasket R 57 | 1 |
| 9 | TF35-28-21-05 | Retainer Ring | 1 |
| 10 | TF35-28-21-06 | Lower Retainer | 1 |
| 11 | PE Seal 95/8* | 1 | |
| 12 | TF35-28-21-07 | Upper Retainer | 1 |
| 13 | SY/T5127-2002 | Stud bolt, 7/8″x 6.35″B 7 | 16 |
| 14 | SY/T5127-2002 | Nut 7/8″2H | 48 |
| 15 | SY/T5127-2002 | Ring Gasket R 24 | 4 |
| 16 | 52-21×2″LP | Companion Flange | 2 |
| 17 | EVA 52-35-00 | Expanding Gate Valve | 2 |
| 18 | SY/T5127-2002 | Taper end bolt, 7/8″x 4.3″B 7 | 16 |
| 19 | TF35-28-21-08 | Casing hanger C 22, 7″ | 1 |
| 20 | TF35-28-21-09 | Casing head housing 135/8″-5Kx1f-5K | 1 |
| 21 | TF35-28-21-10 | Tie-down screw assembly | 4 |
| 22 | SY/T5127-2002 | Stud bolt.13/8″x 10*B 7 | 16 |
| 23 | SY/T5127-2002 | Nut 13/8″2H | 32 |
| 24 | SY/T5127-2002 | Ring gasket R 53 | 1 |
| 25 | Test Plug&Retrieval Tool 135/B”-3K | 1 | |
| 26 | Wear Bushing 135/8″-3K | 1 | |
| 27 | Test Plug&Retrieval To ol1f*-3K | 1 | |
| 28 | Wear Bushing 11″-3K | 1 |
