10000 Psi Swivel Tee Fitting, Wellhead Crossover Customized Design Available
10000 Psi Swivel Tee Fitting , Wellhead Crossover Customized Design Available
Description| Application: | Wellhead Manifold | Usage: | Wellhead Pipeline Connection |
| Material: | Alloy Steel Forging | Production Level: | PLS 3 |
| Production Level: | PR1 | Standard: | API 6A |
| Product Name: | Wellhead Integral Pipe Fitting | Size: | 2" |
| Working Pressure: | 10000 Psi | Working Condiction: | Standard Serive Or Sour Service |
| Highlight: | high pressure pipe fittings, wellhead connector | ||

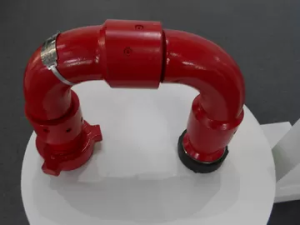

API 6A Wellhead Integral Pipe Fittings Swivel Joint / Tee / Wellhead Crossover
Wellhead Integral Fittings are manufactured according to API 6A standard, and used for connecting surface manifold. The wellhead integral Fittings are forged from high strength alloy steel, handled by advanced heat treatment technology and conducted strict factory quality control. Two type of end connections are available including union or thread. Many types are available including tees, laterals, wyes, long radius swivels, ells, crosses, adapters and union plugs. We also offer customized designSpecification of wellhead integral pipe fitting
| No | Description | Unit of Measure | Quantity |
| 1 | FLOW LINE PIPE,3000PSI,3",10FT Flowline pipe,3000psi, Length 10Ft, size (in)3",integral designs (wing union). | Nos | 21 |
| 2 | HP SWIVEL JOINT 3",3000PSI, Style 10 Swivel joint, style 10 MDL. BSR-6 fitted with nipple and with male & female union ends. Thread - 602, 3000psi | Nos | 23 |
| 4 | FLOW LINE CHECK VLV,2",6000PSI,F/M FLOW LINE CHECK VALVE, valve size(in)2",6000psi, inlet - female, outlet - male, standard flow, | Nos | 2 |
| 5 | CROSSOVER 2 7/8" EUE8RD-3",3000PSI,F PIPE THREAD TO WING UNION INTEGRAL SWAGE 2 7/8" EUE 8 RD -3" ,3000psi ,FEMALE | Nos | 1 |
| 6 | CROSSOVER 4 1/2" EUE8RD-3",3000PSI,F INTEGRAL CONNECTION,CROSSOVER,PIPE THREAD TO WING UNION INTEGRAL SWAGE size(in),4 1/2" EUE 8 RD - 3", 3000psi,FEMALE | Nos | 13 |
| 7 | CROSSOVER 3 1/2" EUE8RD-3",3000PSI,F INTEGRAL CONNECTION,CROSSOVER,PIPE THREAD TO WING UNION INTEGRAL SWAGE size(in),,3 1/2" EUE 8 RD - 3",3000psi,FEMALE | Nos | 1 |
| 8 | CROSSOVER 4 1/2" EUE8RD-3",3000PSI,M INTEGRAL CONNECTION,CROSSOVER,PIPE THREAD TO WING UNION INTEGRAL SWAGE size(in),4 1/2" EUE 8 RD -3",3000psi,MALE | Nos | 11 |
| 9 | CROSSOVER 3 1/2" EUE8RD-3",3000PSI,M INTEGRAL CONNECTION,CROSSOVER,PIPE THREAD TO WING UNION INTEGRAL SWAGE size(in),3 1/2" EUE 8 RD -3",3000psi,MALE | Nos | 3 |
| 10 | FLOW LINE PIPE,3000PSI,3",5FT "FLOW LINE PIPE - D -3"" PRESSURE -3000PSI LENGTH - 5FT THREAD - 602" | Nos | 3 |
16-28mm Oilfield Handling Tools XQ114/6YB Tubing Power Tong Anti Rust
16-28mm Oilfield Handling Tools XQ114/6YB Tubing Power Tong Anti Rust
| Application | Making Up/Breaking Out |
| Usage | Oilfield Handling Tools |
| Product | Sucker Rod |
| Standard | API |
| Process Type | Assy |
| Condition | New |
| Size | 16-28mm |
| Material | Alloy Steel |
| Working Condition | Standard Service |
| Highlight | drilling handling tools, drill pipe handling tools |

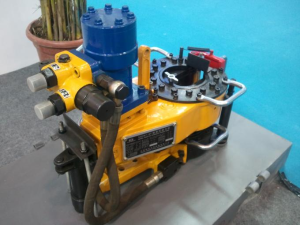

Oil Well Handling Tools Tubing Power Tong
Model XQ114/6YB(4 1/2") hydraulic power tong is an open type power tong for the making up and breaking out of tubing in well services. This product has the following features:- The tong is made up of master tong and backup tong, the master tong has a high and low gear train, the tong is compact, light and efficient.
- The master tong and backup hydraulics operate on valve banks independent of each other.
- There is an evident speed :high speed at top grade and large torque at low grade
- The tong has incorporated a new system of disc brake to hold the jaws to connection more effectively.
- Makeup and breakout are made easy with a simple turn to the reset knob on the tong and backup.
- The backup has been supplied with quick coupling hoses and connections for quick and easy installation for jobs where you need a backup and the backup can be removed in seconds for jobs
Specification of tubing power tong
| Model | - | XQ89/3Y3YC | XQ114/6YB | XQ140/12Y | XQ140/12Y-T |
|---|---|---|---|---|---|
| Applicable range | mm | 60-89 | 60-114 | 60-140 | 48-140 |
| in | 2 3/8 - 3 1/2 | 2 3/8 - 4 1/2 | 2 3/8 - 5 1/2 | 1.9 - 5 1/2 | |
| Applicable range | mm | 60-114 | 73-141.5 | 73-156 | 60-156 |
| in | 2 7/8 - 4 1/8 | 2 7/8 - 5 1/8 | 2 7/8 - 6 1/8 | 2 3/8 - 6 1/8 | |
| Hi-gear rated torque | kN.m | 1100 | 1500 | 2600 | 2600 |
| ft.lbf | 811 | 1106 | 1918 | 1918 | |
| Lo-gear rated torque | kN.m | 3300 | 6000 | 12000 | 12000 |
| ft.lbf | 2213 | 4425 | 8851 | 8851 | |
| High gear speed | rpm | 90 | 85 | 72 | 72 |
| Low gear speed | rpm | 30 | 20 | 14 | 14 |
| Rated pressure | MPa | 10 | 11 | 12 | 12 |
| psi | 1450 | 1595 | 1740 | 1740 | |
| Max. oil supply | L/min | 80 | 100 | 120 | 120 |
| gpm | 21 | 26 | 32 | 32 | |
| Size | mm | 650×430×550 | 750×500×600 | 1024×582×539 | 1050×620×900 |
| in | 25.6×16.9×21.7 | 29.5×19.7×23.6 | 40.3×22.9×21.2 | 41.3×24.4×35.4 | |
| Weight | kg | 158 | 220 | 480 | 480 |
| lb | 348 | 485 | 1060 | 1060 |
2000 – 15000psi Tubing Head Spool Flange Adapter Alloy Steel High Performance
| Application: | Wellhead Tubing Head Spool | Usage: | Oil Well Production Service |
| Material Class: | AA | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Wellhead Tubing Head Spool | Working Pressure: | 3000 Psi |
| Flange Size: | 7 1/16” | Tubing Size: | 2 7/8" |
| Highlight: | tubing hanger wellhead equipment, tubing hanger spool | ||
API 6A Wellhead Tubing Head Adapter Alloy Steel Forging Adatper Flange
The tubing head adapter, located above the tubing head, provides a transition to the Christmas Tree. That is, it creates a lower connection for the wellhead tubing head and an upper connection for the Christmas tree.
The bottom of the tubing head adapter seals against the tubing head and contain reservoir or injection fluids moving through the top of the tubing.
Tubing Head Adapter equipment adapts the uppermost connection of a tubing head to the lowermost valve (lower master vale) of the Christmas Tree.
Tubing head adapter, by its coupling, provide a means to suspend the tubing. The coupling accepts a back pressure valve (BPV).
Specification of the tubing head adapter
| Size: | 2-1/16" - 13-5/8" |
| Rated Working Pressure: | 2000 PSI - 20000 PSI |
| Top Connection Type: | Studded or UPTBG Threaded |
| Material Class: | AA, BB, CC, DD, EE, FF |
| Product Specification Level: | PSL1, PSL2, PSL3, PSL4 |
| Temp Class: | L, P, R, S, T, U, V |
| Performance Requirement: | PR1, PR2 |
| Bottom Connection Type: | Flange |
| Standard | API Spec 6A, NACE-MR0175 |
| Application: | Tubing Head, Christmas Tree |
Types of tubing head adapter
* B-1 - Tubing Head Adapter: flanged bottom adapter with internal female suspension threads and male top threads
* B2P- Tubing Head Adapter : Low-cost adapter that has a flanged or studded top and bottom connection and internal female
*Tubing Head Adapter : Flanged or studded bottom and top connections
*Tubing Head Adapter (Coupling type adapter)With a flanged bottom connection, a studded top connection, and internal ACME threads

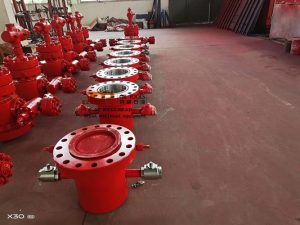

2000psi Tubing Head Spool Model A7 7“ 8RD X 2 7/8“ EU With Tubing Hanger
| Application: | Oilfield Wellhead Equipment | Usage: | Oil Well Drilling Flow Control |
| Material: | Class DD-NL | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Tubing Head Spool | Working Pressure: | 2000 Psi |
| Highlight: | tubing hanger spool, tubing head assembly | ||
API 6A Wellhead Equipment Tubing Head Tubing Spool With Tubing Hanger
The tubing head spool with tubing hanger is designed and manufactured according API6A specification, it is the part of the oilfield wellhead equipment connected to wellhead Christmas tree. With the tubing hanger, the tubing spool is used as the tubing head in well control system, the tubing head is connected to the upper casing head with the christmas tree and applied for sealing the annular space the string and oil-layer casing.
This tubing head with simple structure, bottom connection with 7`` CSG 8rd and equipped with 2 7/8``EU tubing head on tubing hanger.
It is a dual string tubing head with 2`` LP outlets, also bottom can be slip on weld option.
Specification
| Bottom Thread | 4 1/2" 8rd API | 5 1/2" 8rd API | 7" 8RD API |
| Working pressure | 2000psi | 2000psi | 2000psi |
| Test pressure | 4000psi | 4000psi | 4000psi |
| Cap thread | 8 5/8" 8rd API | 8 5/8" 8rd API | 8 5/8" 8rd API |
| Inner string | 1"-3" | 1"-3" | 1"-3" |
| Side outlet | 2" LP | 2" LP | 2" LP |
| Min. Bore | 4" | 4.938" | 6.438" |

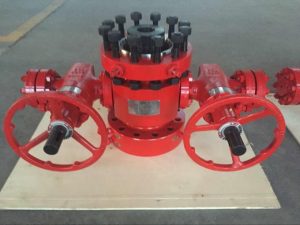

5 1/2“ X 2000 Psi Wellhead Christmas Tree Components / Tubing Head Assembly
| Application: | Oilfield Wellhead Equipment | Usage: | Oil Well Drilling Flow Control |
| Material Class: | AA | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Tubing Head Spool | Working Pressure: | 2000 Psi |
| Specification: | 5 1/2" X 2000# | ||
| Highlight: | tubing hanger spool, tubing head assembly | ||
Wellhead Tubing Head Spool API 6A 5 1/2`` x 2000 psi for Wellhead X-tree
The tubing head spool with tubing hanger is designed and manufactured according API6A specification. Tubing head is designed with versatile straight-bore and installed with tubing hanger in different specification. With 45° shoulder design, the tubing head has high load capacity. Tubing head with side Outlet Connection Form Threaded flange side outlet,design with VR plug the tubing head is connected to the upper casing head with the christmas tree and applied for sealing the annular space the string and oil-layer casing.
Specification of the tubing head spool 5 1/2`` x 2000 psi
| 1 | Tubing head 2000 psi W.P. bottom female threaded with 5 1/2— x 8 TPI(round) and
top flange 7 1/16— x 2000 PSI W.P. for 5 1/2" Casing two number side outlets 2" x 11 1⁄2 TPI female. Top flange to be furnished with tie-downscrews for tubing hanger. include tubing hanger with 2 7/8" EU x 8TPI API RD female thread top and bottom. |
| 2 | Tubing Hanger |
| 3 | Stud bolts 1" dia. x 7" LG. with 2 nuts for each stud for top flange |
| 4 | 2" dia. x 8" LG. 2000 W.P. pipe nipple 11 1⁄2 TPI double ended male thread |
| 5 | 2" x 2000 psi W.P. gate vale threaded type (female) |
| 6 | 2" x 11 1⁄2 TPI, 2000 W.P. threaded bull plug |
| 7 | 2" x 11 1⁄2 TPI, 2000 W.P. threaded bull plug with 1⁄2" NPT hole |
| 8 | 2 3/8" x 2 7/8" EUE change nipple |
7 1/16“ X 5000# Tubing Head Spool High Pressure Oil Wellhead Equipment
| Application: | Oil Well Drilling Operation | Usage: | Oil Well Flow Control |
| Material Class: | AA | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Wellhead Tubing Head Spool | Working Pressure: | 5000 Psi |
| Specification: | 7 1/16" X 5000# | ||
| Highlight: | tubing hanger wellhead equipment, tubing hanger spool | ||
API 6A Tubing Head Spool Alloy Steel
The tubing head is designed and manufactured according API6A specification. The tubing Head named Tubing Head Spool or Tubing Spool, is an important mechanical equipment used on the wellhead assembly. It is usually located in the lower section of the wellhead equipment and above the casing hanger and casing spool. Tubing head is designed with versatile straight-bore and installed with tubing hanger in different specification. With 45° shoulder design, the tubing head has high load capacity. Tubing head with side Outlet Connection Form Threaded flange side outlet,design with VR plug the tubing head is connected to the upper casing head with the christmas tree and applied for sealing the annular space the string and oil-layer casing.
Technical parameter of tubing head
Product Name: Tubing Head Spool
Bore Size: 7-1/16", 9", 11", 13-5/8"
Standards: API Spec 6A, NACE MR0175, ISO 9001, ISO14001, CE etc
Working Pressure: 2000 PSI to 20000 PSI
Outlets: API 6B or API 6BX Flanged Top & Bottom
Material Class: AA, BB, CC DD, EE, FF
Temp Class: L, P, R, S, T, U, V
Performance Requirement: PR1, PR2
Product Specification Level: PSL1, PSL2, PSL3, PSL4
Specification of the tubing head spool
| Bottom flange | Top flange | ||||||
| Size | W.P. (psi) | Size | W.P. (psi) | A mm (in) | B mm (in) | C mm (in) | |
| 7-1/16" | 5, 000 | 7-1/16" | 5, 000 | 600 (23.62) | 122 (4.80) | 180 (7.09) | |
| 10, 000 | 7-1/16" | 10, 000 | 600 (23.62) | 122 (4.80) | 180 (7.09) | ||
| 10, 000 | 7-1/16" | 10, 000 | 600 (23.62) | 160 (6.30) | 180 (7.09) | ||
| 15, 000 | 7-1/16" | 15, 000 | 640 (25.20) | 160 (6.30) | 180 (7.09) | ||
| 11" | 2, 000 | 7-1/16" | 2, 000 | 500 (19.69) | 160 (6.30) | 180 (7.09) | |
| 2, 000 | 7-1/16" | 3, 000 | 560 (22.47) | 122 (4.80) | 180 (7.09) | ||
| 3, 000 | 7-1/16" | 3, 000 | 560 (22.47) | 122 (4.80) | 180 (7.09) | ||
| 3, 000 | 7-1/16" | 5, 000 | 600 (23.62) | 160 (6.30) | 180 (7.09) | ||
| 3, 000 | 9" | 3, 000 | 660 (25.98) | 209 (8.23) | 220 (8.66) | ||
| 3, 000 | 9" | 5, 000 | 660 (25.98) | 209 (8.23) | 220 (8.66) | ||
| 5, 000 | 7-1/16" | 5, 000 | 630 (24.80) | 160 (6.30) | 180 (7.09) | ||
| 5, 000 | 7-1/16" | 10, 000 | 635 (25) | 160 (6.30) | 180 (7.09) | ||
| 5, 000 | 9" | 10, 000 | 790 (31.10) | 209 (8.23) | 220 (8.66) | ||
| 10, 000 | 7-1/16" | 10, 000 | 635 (25) | 160 (6.30) | 180 (7.09) | ||
| 10, 000 | 7-1/16" | 15, 000 | 700 (27.56) | 160 (6.30) | 180 (7.09) | ||
| 10, 000 | 9" | 10, 000 | 830 (32.68) | 209 (8.23) | 220 (8.66) | ||
| 10, 000 | 11" | 10, 000 | 680 (26.77) | 160 (6.30) | 280 (11.02) | ||
| 10, 000 | 11" | 15, 000 | 700 (27.56) | 160 (6.30) | 280 (11.02) | ||
| 13-5/8" | 2, 000 | 7-1/16" | 3, 000 | 590 (22.23) | 160 (6.30) | 180 (7.09) | |
| 2, 000 | 9" | 3, 000 | 590 (22.23) | 209 (8.23) | 220 (8.66) | ||
| 2, 000 | 11" | 3, 000 | 590 (22.23) | 230 (9.06) | 280 (11.02) | ||
| 2, 000 | 11" | 5, 000 | 600 (23.62) | 230 (9.06) | 280 (11.02) | ||
| 2, 000 | 13-5/8" | 3, 000 | 580 (22.83) | 230 (9.06) | 350 (13.78) | ||
| 3, 000 | 7-1/16" | 3, 000 | 660 (25.98) | 160 (6.30) | 180 (7.09) | ||
| 3, 000 | 7-1/16" | 5, 000 | 660 (25.98) | 160 (6.30) | 180 (7.09) | ||
| 3, 000 | 9" | 3, 000 | 660 (25.98) | 209 (8.23) | 220 (8.66) | ||
| 3, 000 | 9" | 5, 000 | 680 (26.77) | 209 (8.23) | 220 (8.66) | ||
| 3, 000 | 11" | 3, 000 | 660 (25.98) | 230 (9.06) | 280 (11.02) | ||
| 3, 000 | 11" | 5, 000 | 660 (25.98) | 230 (9.06) | 280 (11.02) | ||
| 3, 000 | 13-5/8" | 5, 000 | 600 (23.62) | 230 (9.06) | 350 (13.78) | ||
| 5, 000 | 7-1/16" | 5, 000 | 640 (25.20) | 160 (6.30) | 180 (7.09) | ||
| 5, 000 | 7-1/16" | 10, 000 | 650 (25.59) | 160 (6.30) | 180 (7.09) | ||
| 5, 000 | 11" | 5, 000 | 630 (24.80) | 230 (9.06) | 280 (11.02) | ||
| 5, 000 | 11" | 10, 000 | 680 (26.77) | 230 (9.06) | 280 (11.02) | ||
| 5, 000 | 13-5/8" | 5, 000 | 680 (26.77) | 259 (10.20) | 350 (13.78) | ||
| 5, 000 | 13-5/8" | 10, 000 | 700 (27.56) | 230 (9.06) | 350 (13.78) | ||
| 10, 000 | 11" | 15, 000 | 800 (31.50) | 230 (9.06) | 280 (11.02) | ||
| 10, 000 | 13-5/8" | 15, 000 | 820 (32.28) | 230 (9.06) | 350 (13.78 | ||

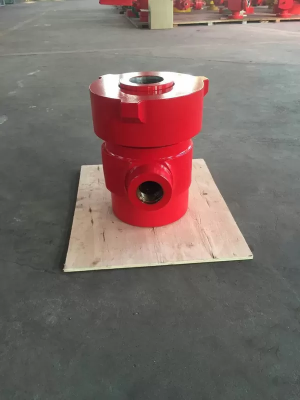

8RD API 6A C22 Casing Head Housing 13 5/8“-3 K X 13 3/8“
8RD API 6A C22 Casing Head Housing 13 5/8``-3 K X 13 3/8``
Description
| Application: | Oil & Gas Well Drilling Operation | Usage: | Wellhead Equipment |
| Material Class: | DD-NL | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Casing Head And Tubing Head | Working Pressure: | 3000 Psi |
| Nominal Bore: | 13 5/8"-3 K X 13 3/8" 8RD | Process Type: | Forging |
| Highlight: | C22 Casing Head Housing, 8RD Casing Head Housing, Wellhead Casing Head Spool Housing | ||
Casing Head Housing 13 5/8``-3 K x 13 3/8`` 8RD API 6A C22 Casing Head
Casing Head 13 5/8``-3 K is the component of wellhead equipment used in oil well drilling operation. The casing head in a conventional wellhead system is the lowest part of the wellhead assembly and is almost always connected to the surface casing string.casing head can control the wellhead pressure,casing head are often welded or screwed on the top of the conductor pipe or the casing then become a part of the wellhead system of the oil well.
Ordered Part List of Wellhead Casing Head
| No | Part Number | Description | Qty |
| 1 | TF35-28-21-01 | Casing Head Housing 13 5/8*-3 K x 13 3/8" 8RD | 1 |
| 2 | TF35-28-21-02 | Nipple 2LP | 2 |
| 3 | BV2"LP-5K | Ball Valve Assy 2"LP5K | 2 |
| 4 | TF35-28-21-03 | Casing Hanger C 2295/B" | 1 |
| 5 | SY/T5127-2002 | Stud Bolt 13/8"x 10.8*B 7 | 20 |
| 6 | SY/T5127-2002 | Nut 13/8"2H | 40 |
| 7 | TF35-28-21-04 | Tie-down screw assembly | 8 |
| 8 | ST/T5127-2002 | Ring Gasket R 57 | 1 |
| 9 | TF35-28-21-05 | Retainer Ring | 1 |
| 10 | TF35-28-21-06 | Lower Retainer | 1 |
| 11 | PE Seal 95/8* | 1 | |
| 12 | TF35-28-21-07 | Upper Retainer | 1 |
| 13 | SY/T5127-2002 | Stud bolt, 7/8"x 6.35"B 7 | 16 |
| 14 | SY/T5127-2002 | Nut 7/8"2H | 48 |
| 15 | SY/T5127-2002 | Ring Gasket R 24 | 4 |
| 16 | 52-21x2"LP | Companion Flange | 2 |
| 17 | EVA 52-35-00 | Expanding Gate Valve | 2 |
| 18 | SY/T5127-2002 | Taper end bolt, 7/8"x 4.3"B 7 | 16 |
| 19 | TF35-28-21-08 | Casing hanger C 22, 7" | 1 |
| 20 | TF35-28-21-09 | Casing head housing 135/8"-5Kx1f-5K | 1 |
| 21 | TF35-28-21-10 | Tie-down screw assembly | 4 |
| 22 | SY/T5127-2002 | Stud bolt.13/8"x 10*B 7 | 16 |
| 23 | SY/T5127-2002 | Nut 13/8"2H | 32 |
| 24 | SY/T5127-2002 | Ring gasket R 53 | 1 |
| 25 | Test Plug&Retrieval Tool 135/B"-3K | 1 | |
| 26 | Wear Bushing 135/8"-3K | 1 | |
| 27 | Test Plug&Retrieval To ol1f*-3K | 1 | |
| 28 | Wear Bushing 11"-3K | 1 |
AISI 4130 Forging Surface Safety Valve / SSV For Well Surface Testing Operation
AISI 4130 Forging Surface Safety Valve / SSV For Well Surface Testing Operation
Description| Application: | Well Testing Service | Usage: | Well Emergency Equipment |
| Material: | AISI 4130 Forging | Production Level: | PLS 3 |
| Production Level: | PR1 | Standard: | API 6A |
| Product Name: | Wellhead Adapter Spool | Size: | 4 1/16" |
| Working Pressure: | 5000psi - 15000 Psi | Working Condiction: | Standard Serive Or Sour Service |
| Highlight: | SSV Well Testing Equipment, AISI 4130 Forging Surface Safety Valve, Well Testing Surface Safety Valve 5000psi | ||
Surface Safety Valve / SSV For Well Surface Testing Operation
Surface safety valve (SSV) is a hydraulically or pneumatically actuated fail-safe gate valve for testing service in oil and gas well with high flow rates, high pressures, or the pressure of H2S. The surface safety valve (SSV) is used to quickly shut down the well choke manifold upstream in the event of overpressure, failure, a leak in downstream equipment, or any other well emergency requiring an immediate The valve is used in conjunction with an emergency shut down system(ESD) and normally installed upstream of the choke manifold. The valve is remotely operated either manually by push button or automatically triggered by high/low pressure pilots.Specification of Surface Safety Valve
| Service | Oil, Gas, H2S Service |
| Size | 2 – 7 inch |
| Working Pressure | 2000 - 15,000PSI |
| Working Temperature | P-U |
| Material Class | AA -EE |
| Connection | Flanged & Weco Hammer Union & Thread |
| Size (inches) | Working Pressure | Temperature Rating ℉(℃) | Weight (kg) |
| 3.1/8” | 5000 psi (345) | -20 ~ 250 | 490 |
| (-29 ~ 121) | |||
| 4.1/16” | 5000 psi (345) | -20 ~ 250 | 555 |
| (-29 ~ 121) | |||
| 5.1/8” | 5000 psi (345) | -20 ~ 250 | 600 |
| (-29 ~ 121) | |||
| 3.1/16” | 10000 psi (690) | -20 ~ 250 | 795 |
| (-29 ~ 121) | |||
| 4.1/16” | 10000 psi (690) | -20 ~ 250 | 910 |
| (-29 ~ 121) | |||
| 3.1/16” | 15000 psi (1034) | -20 ~ 250 | 900 |
| (-29 ~ 121) |
Wellhead Product scope
Wellhead valves: Gate Valves, Plug Valves, Choke Valves, Check Valves, Mud Valves and various wellhead valve parts etc.
Wellhead Manifold: Choke and Kill Manifold, Drilling Floor Manifold, Fracturing manifold, Well Testing Manifold.
Wellhead Equipment: Wellhead Christmas Tree / X-Tree, Casing Head, Casing Hanger, Tubing Head,Tubing Hanger, Casing Spool, Tubing Spool, Drilling Spool etc.
Wellhead Adapter: Spacer Spool / Riser Spool ,Flange Adapter, Union Flange, Double Studded Adapter Flange, Welded Neck Flange, Blind Flange,Companion Flange, Instrument Flange, Wellhead Clamp & Hub etc.
Wellhead Integral Fittings: Hammer Union, Elbow, Swivel Joint, Block Cross, Block Tee, Straight Pipe, Pipe Loops etc.
Well Pressure Control Equipment: Annular BOP, RAM BOP, Sucker Rod BOP etc
Alloy Steel Forging Tubing Head Adapter / Tubing Head Flange 7“ Corrosion Resistance
| Application: | Wellhead Tubing Head Spool | Usage: | Oil Well Production Service |
| Material Class: | AA | Production Level: | PLS 3 |
| Temperature Class: | U | Standard: | API 6A |
| Product Name: | Wellhead Tubing Head Spool | Working Pressure: | 3000 Psi |
| Flange Size: | 7" | Tubing Size: | 2 3/8" |
| Highlight: | tubing hanger wellhead equipment, tubing head assembly | ||
API 6A Wellhead Tubing Head Adapter Alloy Steel Forging Adatper Flange
Tubing head adapter is a kind of wellhead adapter flange, normally, the tubing head adapter used on the top of the tubing head and creates a transition between the tubing head and the Christmas treeit . The bottom connection of the adapter matches the tubing head, and the top connection matches the X-MAS tree. Tubing head adapters are available for all types of single and multi-string completions, including those using ESP penetrator, packers, down hole control valves and gas lift valves.
Specification of the tubing head adapter
| Size: | 2-1/16" - 13-5/8" |
| Rated Working Pressure: | 2000 PSI - 20000 PSI |
| Top Connection Type: | Studded or UPTBG Threaded |
| Material Class: | AA, BB, CC, DD, EE, FF |
| Product Specification Level: | PSL1, PSL2, PSL3, PSL4 |
| Temp Class: | L, P, R, S, T, U, V |
| Performance Requirement: | PR1, PR2 |
| Bottom Connection Type: | Flange |
| Standard | API Spec 6A, NACE-MR0175 |
| Application: | Tubing Head, Christmas Tree |
Types of tubing head adapter
B2P- Tubing Head Adapter
Low-cost adapter that has a flanged or studded top and bottom connection and internal female.
B-1 - Tubing Head Adapter:
flanged bottom adapter with internal female suspension threads and male top threads
A5P Tubing Head Adapter
Flanged or studded bottom and top connections.
BO2 Tubing Head Adapter (Coupling type adapter)
With a flanged bottom connection, a studded top connection, and internal ACME threads.
